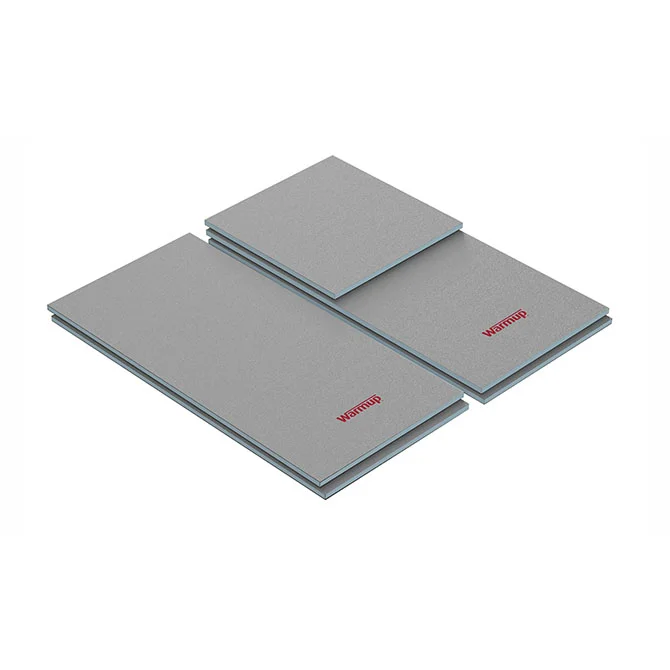

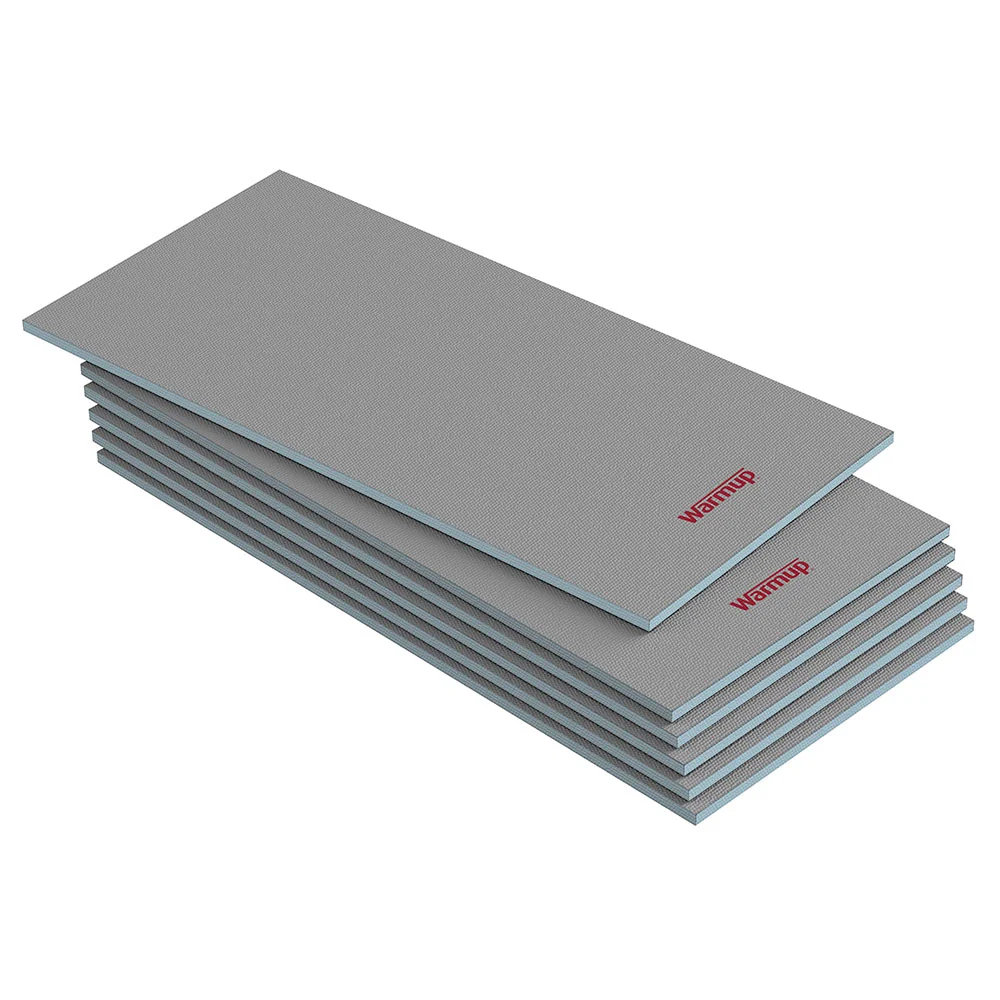

Warmup Coated Insulation Board

Using Warmup Insulation Boards greatly improves the energy-efficiency of an underfloor heating system. They prevent heat from passing through from the heater to the subfloor, pushing the heat produced upwards, onto the floor surface where you want it. Insulation Boards are available in a wide range of thicknesses.

Product Details

• Improves heat-up times by up to 90%
• Reduces heat loss
• Waterproof and soundproof properties
• Strong and flexible design – withstands loads of up to 30 Tonnes / m2
• Range of thicknesses from 6mm – 50mm
• For use on both floors and walls
• Board thickness: 6mm, 10mm, 20mm, 50mm
• Width: 600mm
• Length: 1250mm
• Area: 0.75 m2
• Density: 36 kg/m3
• Compressive strength: 3.0 kg/cm2 (300kN/m2)
• Water absorption (capillary): Nil
• Water vapour permeability (Sd): 3.2m
• Resistance to body impact: 3x120N/m
• Bending stiffness, EI: (20mm) 601kNmm2 (30mm) 1285 kN/mm2
• Tile loading weight 62kg/m2
• No primer required when used in conjunction with underfloor heating
• Bond strength: 0.3N/mm2
• Shear bond strength: 3.32/kg/cm2
• Thermal conductivity: 0.027 W/mK
• Coefficient of linear expansion: 30 x 10-6 K-1
• Class “O” / “B1” fire rated
• Fire ignitability: “P” not easily ignitable
• Impact sound reduction: dLw = 21
