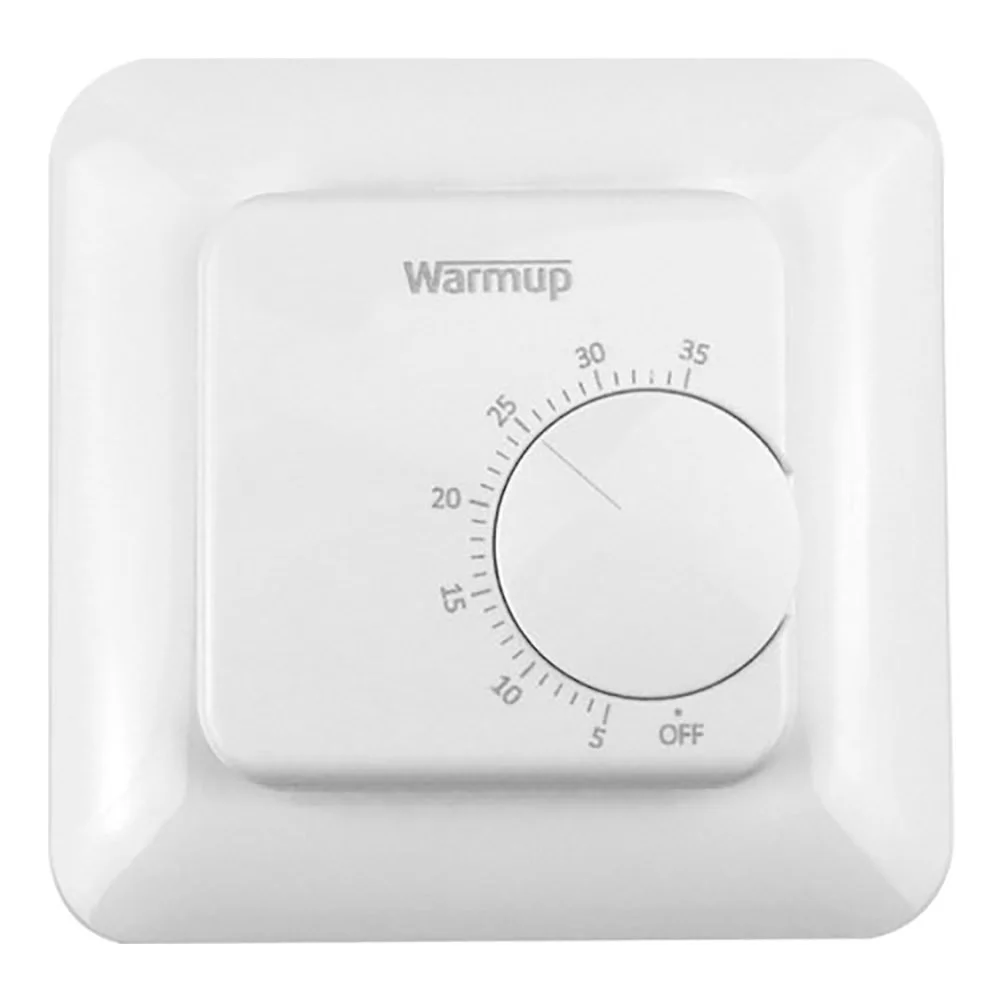

Warmup White Manual Thermostat

Warmup’s MSTAT is a manual thermostat that can be used with either underfloor or central heating systems. Designed with an integrated dual air and floor sensor, the MSTAT gives you the choice to set an air comfort temperature or a floor comfort temperature. The MSTAT Thermostat is perfect for use in rooms which do no not benefit or require a set heating program; simply twist the dial to your optimal comfort temperature and you can enjoy warmth exactly when you want it.

Features

• Simple dial-based control
• Quick and easy installation
• Compatible with all Warmup Underfloor Heating Systems
• Clean, classic design

•
  Concealed heating indicator
•
  Adjustable floor temperature limit
•
  Floor and air sensors ensure precise control
•
  Sensors can be set as; Air, floor or Air with a floor limit
•
  Automatically enters ‘safe mode’ if sensor failure detected
•
  CE marked for ultimate peace of mind

Technical Specifications

INPUT VOLTAGE 230V ± 10% at 50Hz
MAX LOAD 16A (3680W)
DIMENSIONS (H/W/D): 86 x 86 x 50 mm
TEMPERATURE RANGE +5°C to +35°C
FLOOR LIMIT TEMPERATURE +27°C
SAFE MODE 2 MINUTES ON, 2 MINUTES OFF, 50% DUTY
SENSORS Air & FLOOR
SENSOR TYPE NTC5K 3m LONG (CAN BE EXTENDED TO 50m)
HEATING INDICATION CONCEALED LED
IP RATING IP40
INSULATION CLASS II
Er-P CLASS I
INSTALLATION DEPTH 35mm BACK BOX
COMPATIBILITY ELECTRIC UNDERFLOOR, HYDRONIC UNDERFLOOR & CENTRAL HEATING SYSTEMS
STANDARDS EN60730-1 & EN60730-2-9

3 Year Guarantee

Please note: This thermostat is suitable with electric underfloor heating systems only.
